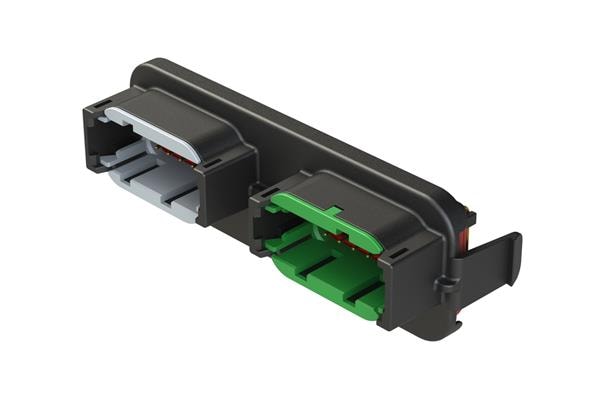

Amphenol SINE Systems ATM13-12PA-12PC-BM01 12-Way Header (2) 12 Pos SZ 20 A&C Key Gold

Color: Black

Pitch: 4.2 mm (0.165 in)

Gender: Receptacle (RP - Male)

Insulation: Insulated

Row Spacing: 6.35 mm

Contact Type: Pin

Current Rating: 7.5 A

Mounting Angle: Right Angle

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: ATM06-12S

Flammability Rating: UL 94 V-0

Number of Positions: 24 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
