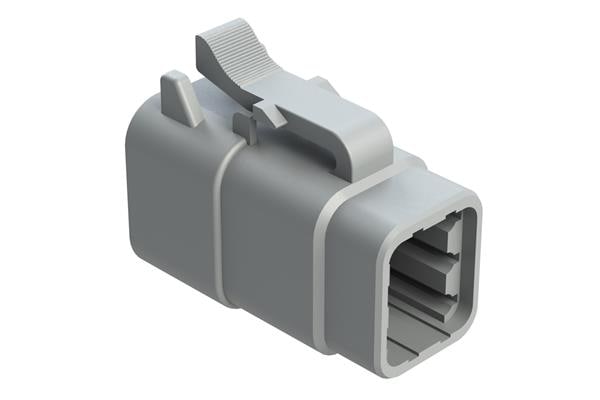

Amphenol SINE Systems ATM06-6S ປລັກ 6 ທາງ, 6-ທາງ

Color: Gray

Insulation: Insulated

Unit Weight: 7.898 g

Contact Type: Socket

Mating Gender: Receptacle

Contact Gender: Socket (Female)

Current Rating: 7.5 A

Housing Gender: Plug (Male)

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 22 AWG to 16 AWG

Ingress Protection: IP67

Mating Part Number: ATM04-6P

Number of Positions: 6 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
