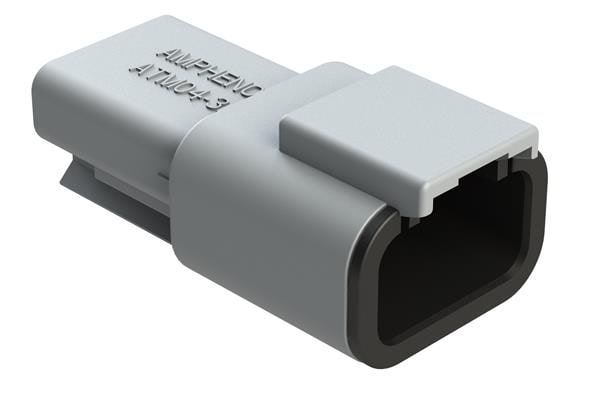

Amphenol SINE Systems ATM04-3P 3-ທາງ RECPT, 3-ທາງ

Color: Gray

Insulation: Insulated

Unit Weight: 7.064 g

Contact Type: Pin

Mating Gender: Plug

Contact Gender: Pin (Male)

Current Rating: 7.5 A

Housing Gender: Receptacle (Female)

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 22 AWG to 16 AWG

Ingress Protection: IP67

Mating Part Number: ATM06-3S

Number of Positions: 3 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
