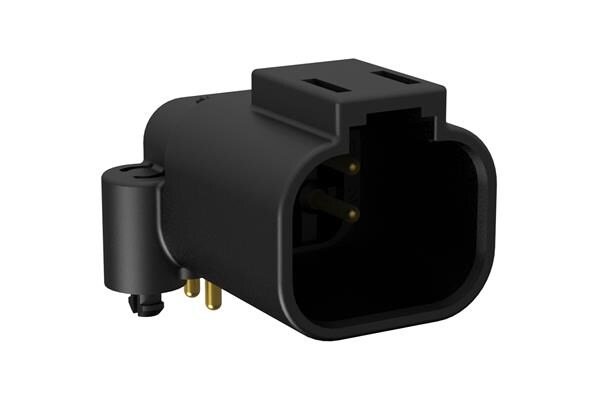

Amphenol SINE Systems ATF13-4P-BM01 ຫົວຂໍ້ 4Pin Snap Fit Gold

Color: Black

Pitch: 9.1 mm (0.358 in)

Gender: Receptacle (RP - Male)

Insulation: Insulated

Row Spacing: 4.42 mm

Contact Type: Pin

Mating Gender: Plug

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: Snap-In

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: AT06-4S

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
