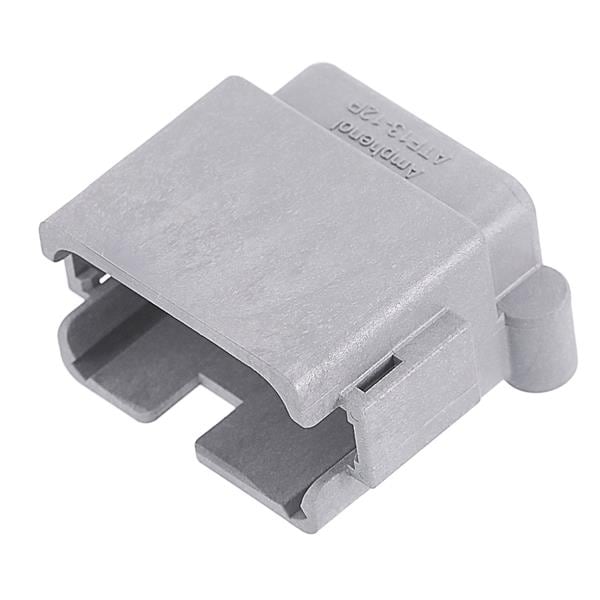

Amphenol SINE Systems ATF13-12PA-BM11 ຫົວກວດ 12Pin A Key Screw Boss Gold

Color: Gray

Pitch: 4.42 mm (0.174 in)

Gender: Receptacle (RP - Male)

Insulation: Insulated

Row Spacing: 4.42 mm

Contact Type: Pin

Mating Gender: Plug

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: Snap-In

Number of Rows: 2 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: AT06-12SA

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
