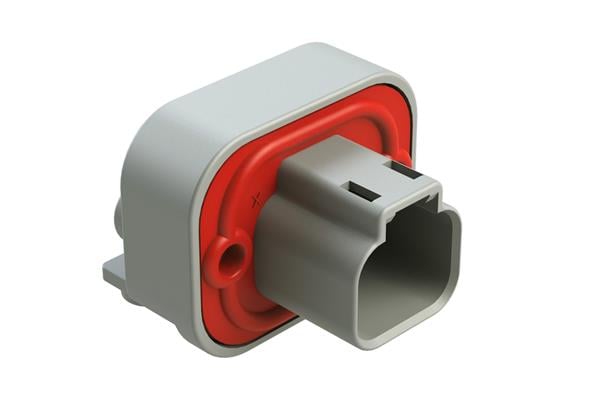

Amphenol SINE Systems AT13-2P-BM03 ຕົວເຊື່ອມ RA Flng Mnt PCB Rcpt 2POS Gry Tin Cont

Color: Gray

Pitch: 5.4 mm (0.213 in)

Width: 27.4 mm

Gender: Receptacle (RP - Male)

Height: 36.1 mm

Length: 35.2 mm

Insulation: Insulated

Contact Type: Pin

Mating Gender: Plug

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: SMD/SMT

Number of Rows: 1 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Solder

Ingress Protection: IP67

Mating Part Number: AT06-2S

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
