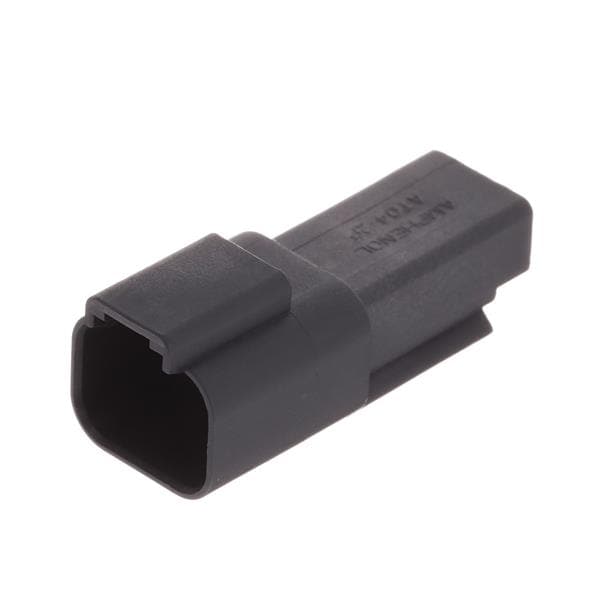

Amphenol SINE Systems AT04-2P-RD01BLK ຕົວເຊື່ອມຕໍ່ 2-ທາງ ປະຕູຮັບສະຫນອງ ຕົວເຊື່ອມຕໍ່ຜູ້ຊາຍ ສີດຳ

Color: Black

Gender: Receptacle (RP - Male)

Length: 43.6 mm

Insulation: Insulated

Unit Weight: 5.268 g

Contact Type: Pin

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: AT06-2Sx

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Description/Function: Contacts Sold Separately

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
