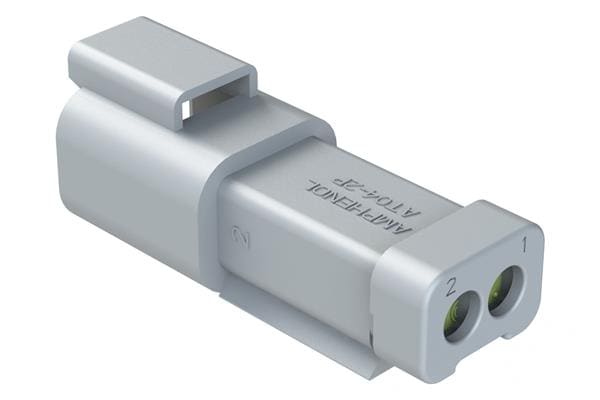

Amphenol SINE Systems AT04-2P-MM01 ຕົວເຊື່ອມ AT Recpt 2 Way ສີເທົາ Dia Seal End Cap

Color: Gray

Gender: Receptacle (RP - Male)

Insulation: Insulated

Contact Type: Pin

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Mating Part Number: AT06-2Sx

Number of Positions: 2 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
