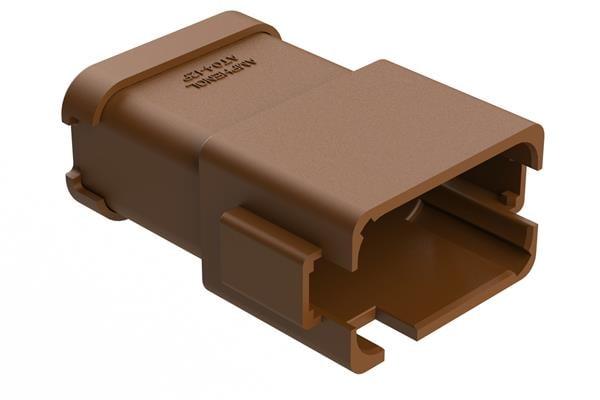

Amphenol SINE Systems AT04-12PD-MM01 ຕົວເຊື່ອມ 12P REC END CAP SEAL KEY POSITION D

Color: Brown

Gender: Receptacle (RP - Male)

Insulation: Insulated

Contact Type: Pin

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: AT06-12SXx

Number of Positions: 12 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
