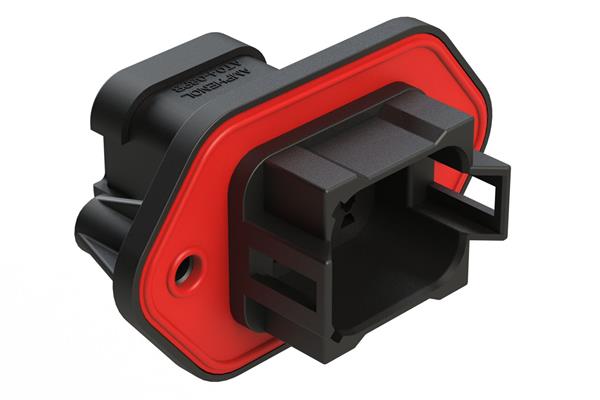

Amphenol SINE Systems AT04-08PB-PMR7G ຕົວເຊື່ອມຕໍ່ 8 ຂາ Rcpt Pnl Mnt B RD Seal/Gasket

Color: Black

Gender: Receptacle (Female)

Insulation: Insulated

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Mounting Flange

Number of Rows: 2 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: AT06-08SBx

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
