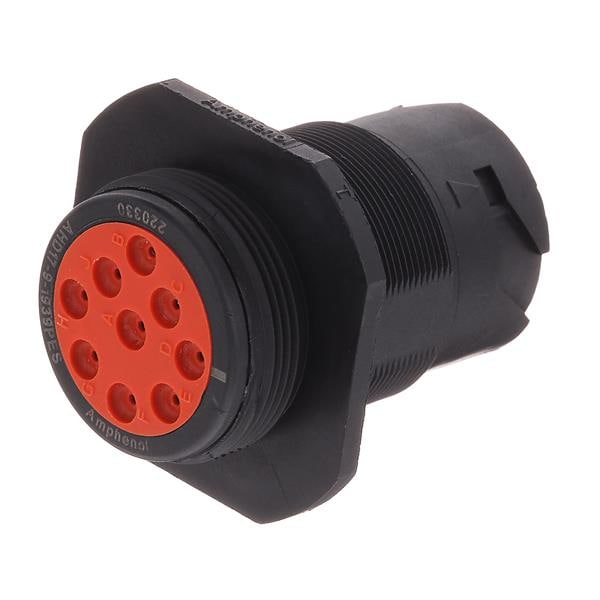

Amphenol SINE Systems AHD17-9-1939PES ຕົວເຊື່ອມຕໍ່ 9P JAM MNT DIAGN RCPT SZ 16 PIN CNT

Color: Black

Gender: Receptacle (Female)

Length: 55.7 mm

Insulation: Insulated

Unit Weight: 53.700 g

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Mating Part Number: AHD16-9-1939S/SE, AHD17-9-1939S/SE

Flammability Rating: UL 94 V-0

Number of Positions: 9 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
