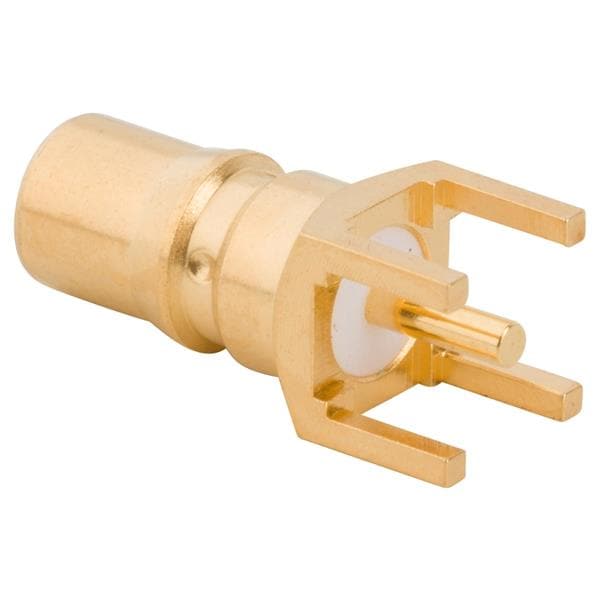

Amphenol RF 930-116J-51P ຕູ້ຕໍ່ສັນຍານ PCB ຢູ່ຕົ້ນຕັ້ງ PCB JACK ຊຸດທອງ

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: QMA

Body Style: Straight

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Straight

Unit Weight: 1.300 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 100

Mounting Style: Through Hole

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Solder Pin

Coupling Mechanism: Push Pull

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
