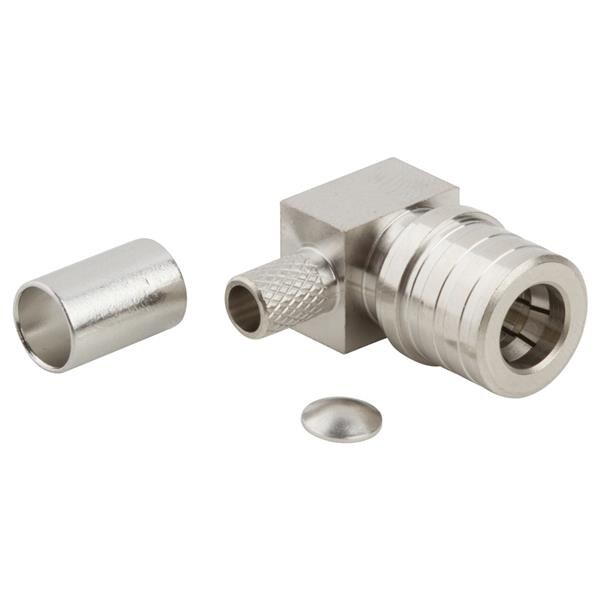

Amphenol RF 930-110P-51A ຕົວເຊື່ອມມຸມຂວາປລັກ RG-58

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: QMA

Body Style: Right Angle

Cable Type: RG-58, 141, LMR195

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Right Angle

Unit Weight: 11.593 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 100

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Termination Style: Crimp

Coupling Mechanism: Push Pull

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
