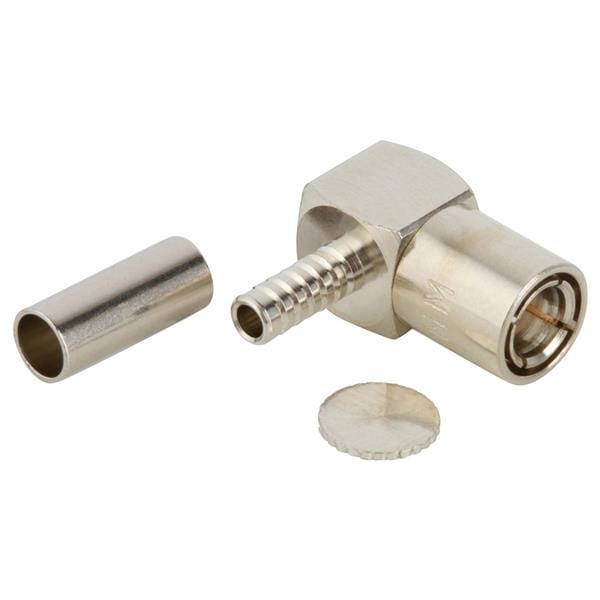

Amphenol RF 903-NM289P-51A ຕົວເຊື່ອມ SMB R/A PLUG RG-316

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMB

Body Style: Right Angle

Cable Type: RG-316

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Right Angle

Unit Weight: 16.670 g

REACH - SVHC: Details

Body Material: Beryllium Copper

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Slide On

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
