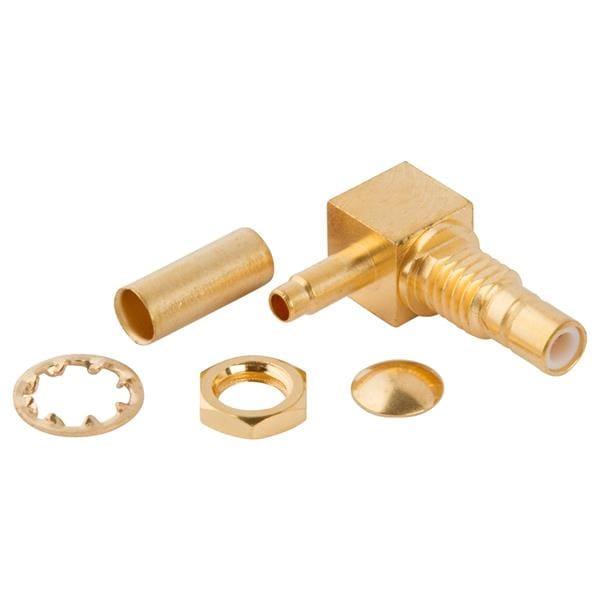

Amphenol RF 903-422J-51A ຂໍ້ຕໍ່ R/A crimp jack

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMB

Body Style: Bulkhead

Cable Type: RG-174, 188, 316, LMR-100A

Body Finish: Gold

Orientation: Right Angle

Unit Weight: 5.002 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Slide On

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
