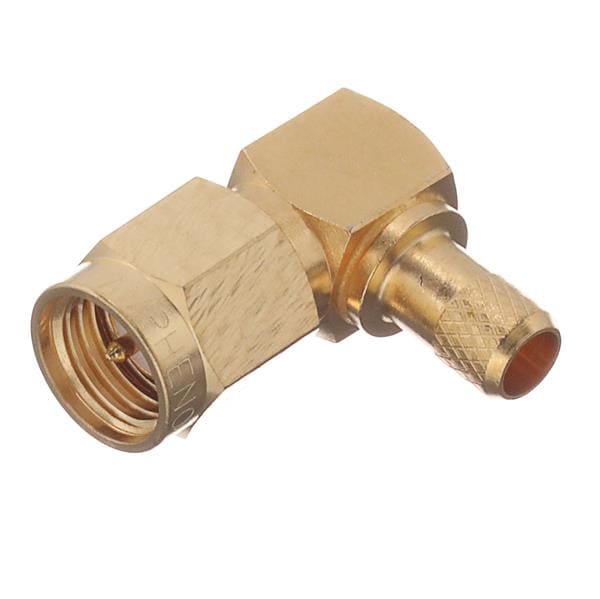

Amphenol RF 901-9531-1 ຕົວເຊື່ອມ R/A PLG 142/400 GLD

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Style: Right Angle

Cable Type: RG-55, 142, 223, 400

Body Finish: Gold

Orientation: Right Angle

Unit Weight: 68 g

REACH - SVHC: Details

Body Material: Stainless Steel

Mating Cycles: 100

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 12.4 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
