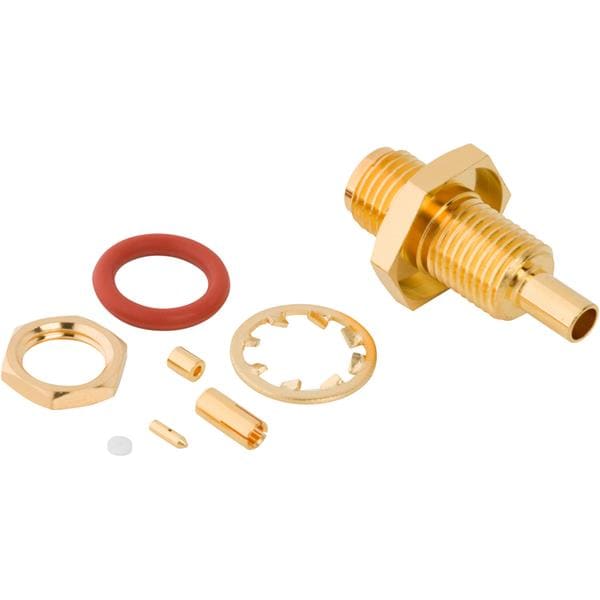

Amphenol RF 901-10805 ປຸ່ມ RP-SMA Crimp Jacks RP SMA Straight Crimp Jack Bulkhead 1.32 mm Micro-cable 50 Ohm IP67

Gender: Jack (Pin)

Polarity: Reverse

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: RP-SMA

Body Style: Bulkhead

Cable Type: 1.13 mm Micro Coax

Body Finish: Gold

Orientation: Straight

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Type: Front Mount, Panel

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 166 Vrms

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: - 65 C

Minimum Operating Temperature: + 165 C
