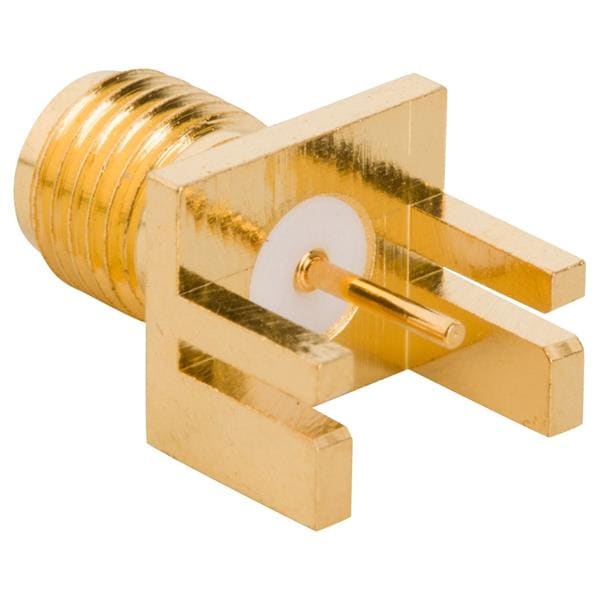

Amphenol RF 901-10019 ຕູ້ຕໍ່ PCB JACK END LAUNCH PC MT..032

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Finish: Gold

Orientation: Straight

Unit Weight: 7.152 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 100

Mounting Style: Edge Launch

Board Thickness: 0.032 in

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
