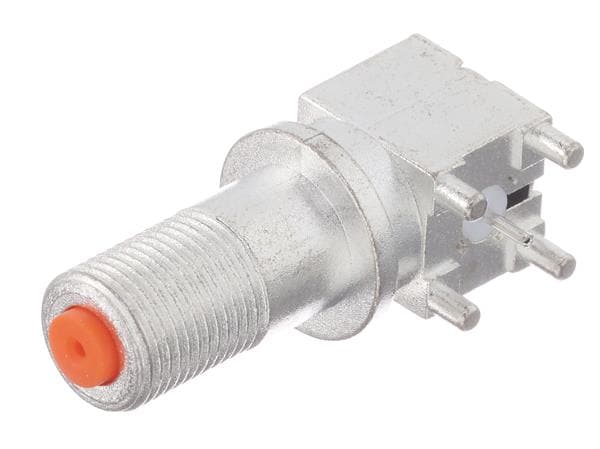

Amphenol RF 531-40165 ຕູ້ເຊື່ອມຕໍ່ PCB F-Type RA PCB Jack Bullkhead 75 Ohm

Gender: Jack (Socket)

IP Rating: IP67

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: F Type

Body Style: Bulkhead

Body Finish: Tin

Orientation: Right Angle

Unit Weight: 27.443 g

REACH - SVHC: Details

Body Material: Zinc Die Cast

Mating Cycles: 100 Cycles

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Tin

Contact Material: Phosphor Bronze

Maximum Frequency: 2.15 GHz

Termination Style: Solder Pin

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
