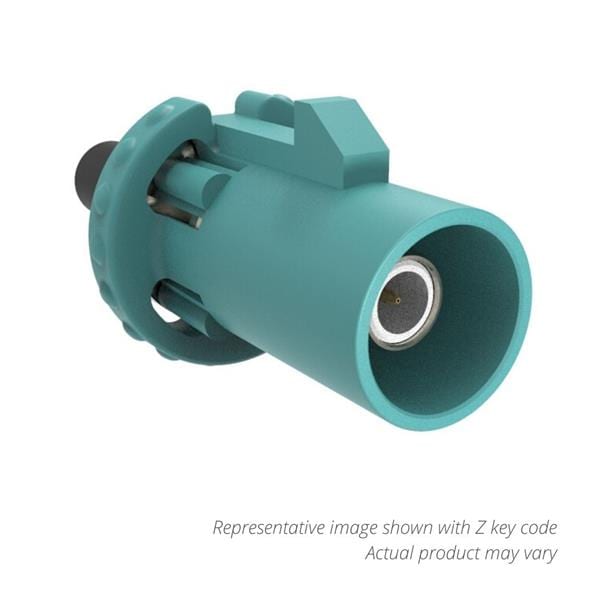

Amphenol RF 2FA1-NBSP-C01-1 ຕົວເຊື່ອມ PLUG RG-174,188,316 FAKRA

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: FAKRA

Body Style: Straight

Cable Type: RG-174, 188, 316

Body Finish: Nickel

Orientation: Straight

REACH - SVHC: Details

Body Material: Zinc Die Cast

Mating Cycles: 100

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 2 GHz

Termination Style: Crimp

Coupling Mechanism: Keyed

Contact Termination: Crimp

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
