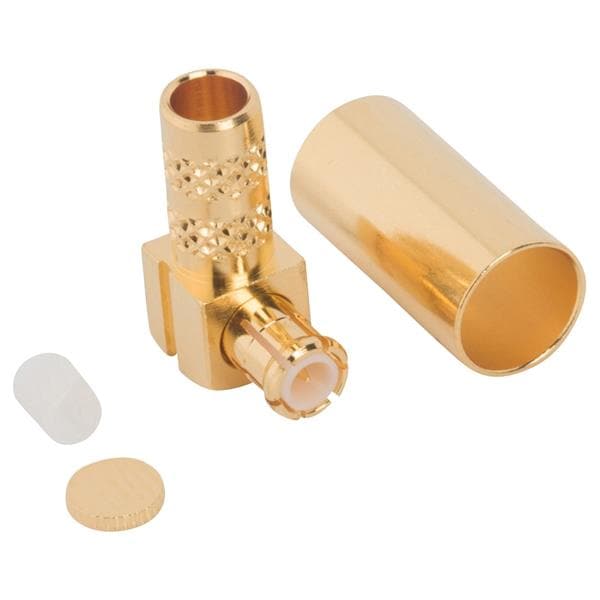

Amphenol RF 252123 ຕົວເຊື່ອມ MCX R/A C/P 223 142 DB ທາງທອງ

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: MCX

Cable Type: RG-55, 142, 223, 400

Body Finish: Gold

Orientation: Right Angle

Unit Weight: 2 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Termination Style: Crimp

Coupling Mechanism: Push On

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
