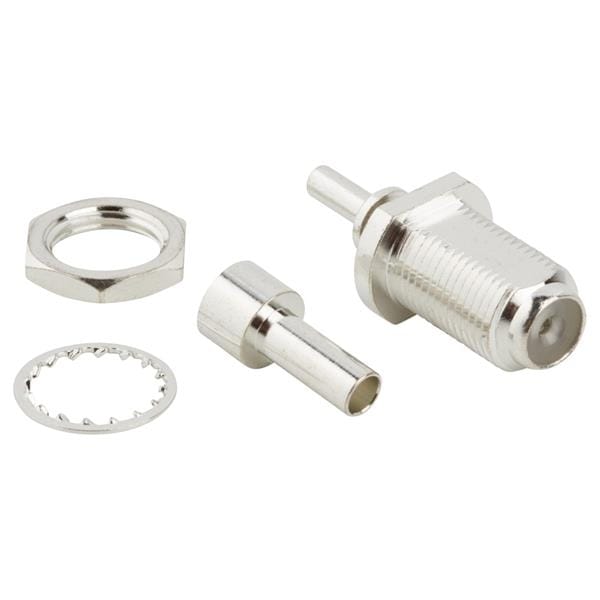

Amphenol RF 222114-10 ກ່ອງຕໍ່ F BULKHEAD JACK 179 B9221

Gender: Jack (Socket)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: F Type

Body Style: Straight

Cable Type: RG-179, 187, Belden 9221

Body Finish: Nickel

Orientation: Straight

Unit Weight: 7.700 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 2 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
