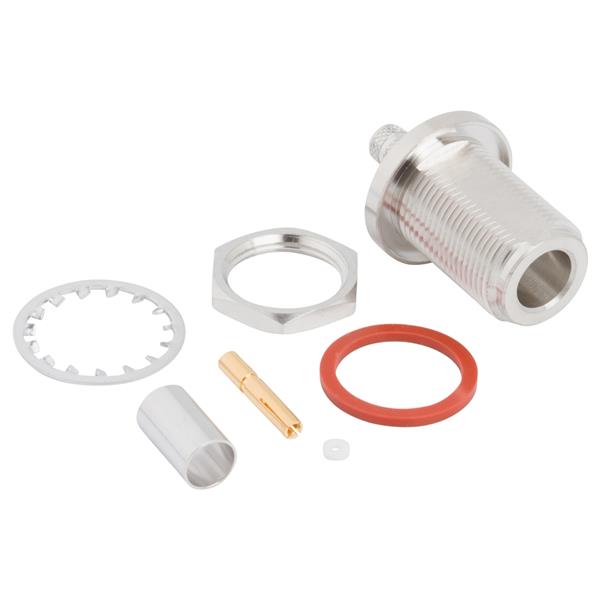

Amphenol RF 172386 ຕົວເຊື່ອມປະເພດ N Str Crmp Jck LMR-240 50 Ohm BlkHd

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: N Type

Body Style: Straight

Cable Type: LMR-240

Body Finish: White Bronze

Orientation: Straight

Unit Weight: 45.874 g

Contact Type: Pin (Male)

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Board Thickness: 6.5 mm

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 6 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
