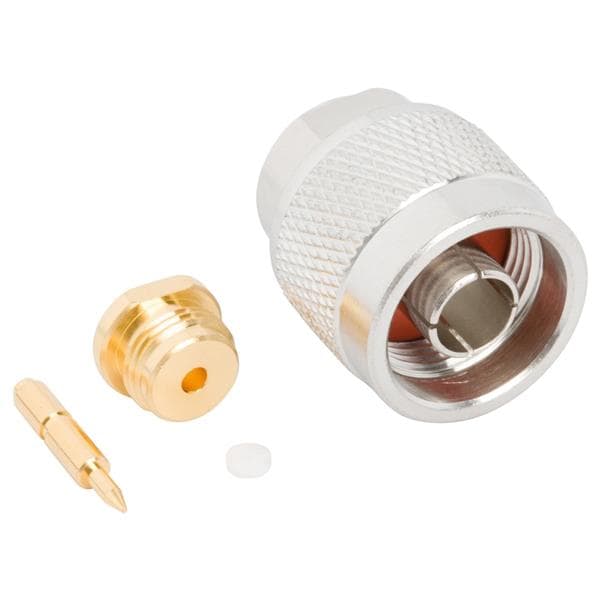

Amphenol RF 172211 ຕົວເຊື່ອມ N ປັກກົງ SOL .085 SEMI RIGID

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: N Type

Cable Type: RG-405/U, 0.086 Semi-Rigid

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Straight

Unit Weight: 37 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 1.5 kV

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 11 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
