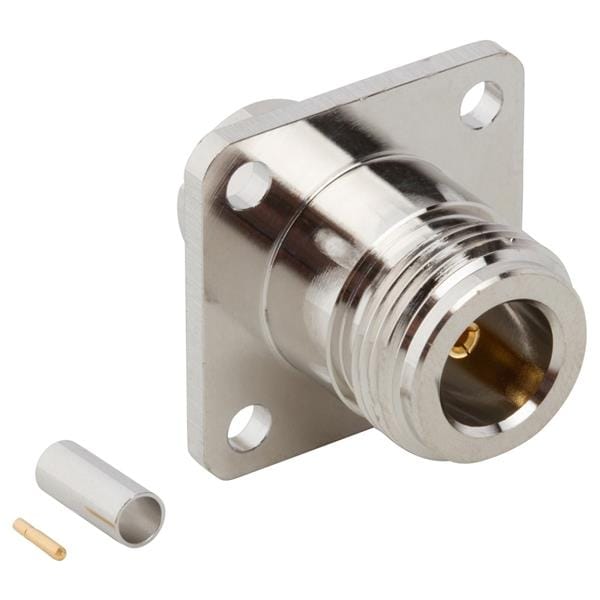

Amphenol RF 172173 ຕົວເຊື່ອມ N PANEL CRIMP JACK RG-316, 174/U

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: N Type

Cable Type: RG-174, 188A, 316, Belden 7805A

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Straight

Unit Weight: 37.600 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Flange Mount

Voltage Rating: 1.5 kV

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
