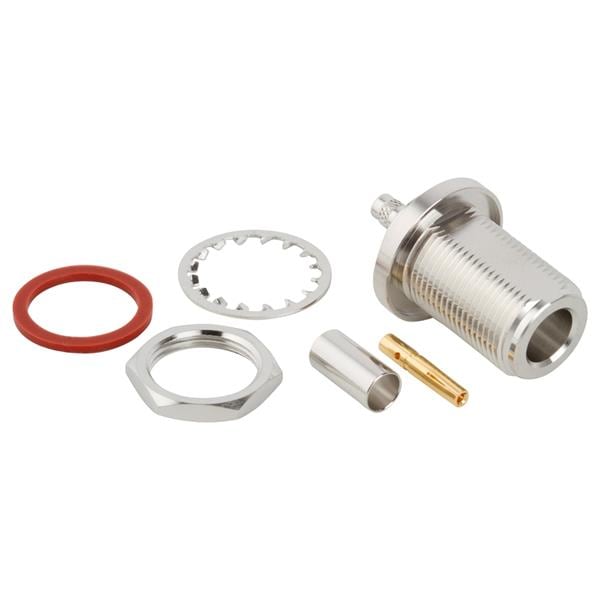

Amphenol RF 172132 ຕົວເຊື່ອມ N BULKHEAD JACK RG142/400

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: N Type

Body Style: Bulkhead

Cable Type: RG-55, 142, 223, 400

Body Finish: Copper-Tin-Zinc Alloy

Orientation: Straight

Unit Weight: 38.660 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 1.5 kV

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
