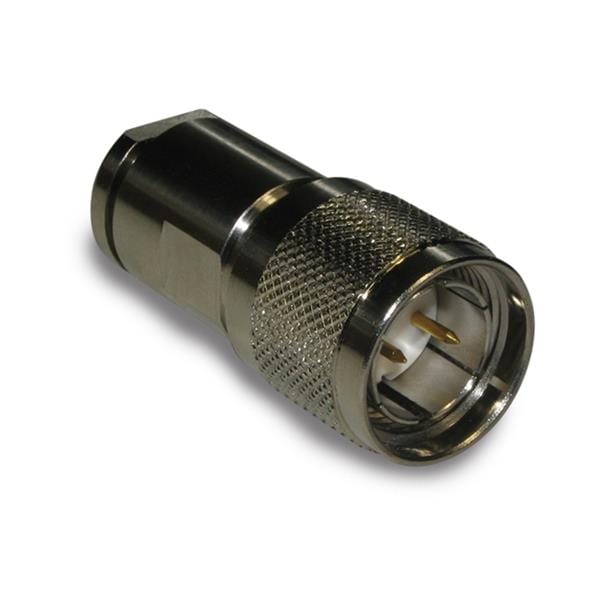

Amphenol RF 162100 ຕົວເຊື່ອມ TWIN STRAIGHT PLUG

Gender: Plug (Pin)

Polarity: Standard

Impedance: 100 Ohms

Isolation: Non-Isolated

RF Series: Twinax

Cable Type: Belden 8227, 89207

Body Finish: Nickel

Orientation: Straight

Unit Weight: 68.100 g

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 100 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 200 MHz

Termination Style: Clamp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
