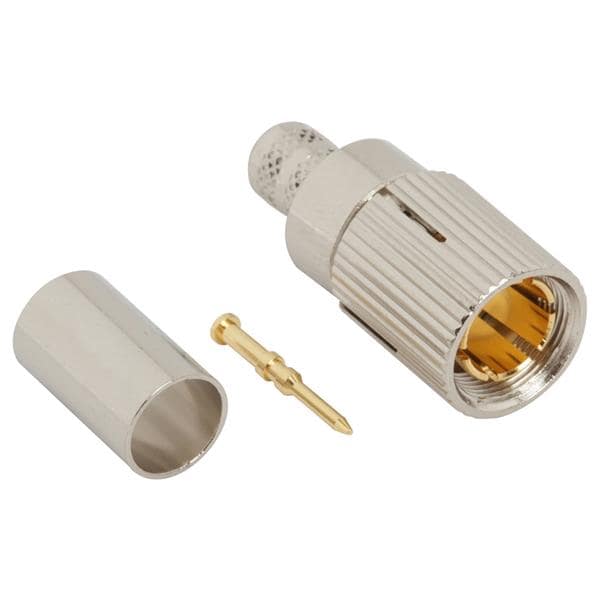

Amphenol RF 156-112-RG59 Connectors 1.6/5.6 PLG STRAIGHT

Gender: Plug (Pin)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: 1.6/5.6

Body Style: Straight

Cable Type: RG-59, 62

Body Finish: Nickel

Orientation: Straight

Unit Weight: 15.381 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 330 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 1 GHz

Termination Style: Crimp

Coupling Mechanism: Push Pull

Contact Termination: Crimp

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
