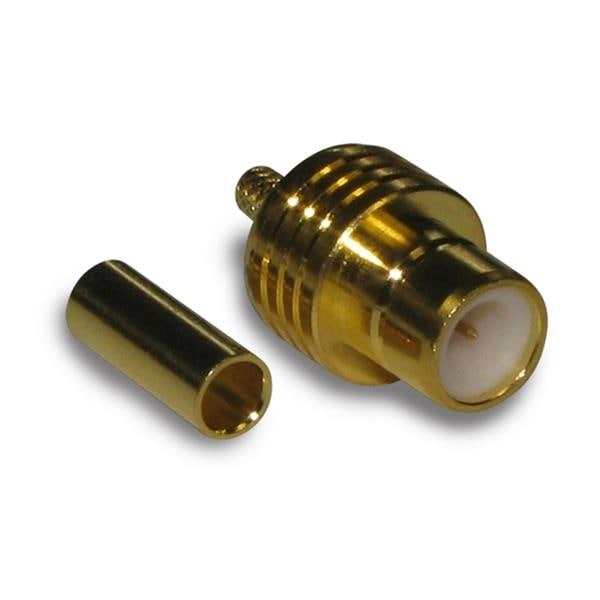

Amphenol RF 142107 ຕົວເຊື່ອມ SMB ST CABLE JACK RG179 75 OHM ທາງທອງ

Gender: Jack (Socket)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: SMB

Cable Type: RG-179, 187, Belden 9221

Body Finish: Gold

Orientation: Straight

Unit Weight: 3.080 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Push On

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
