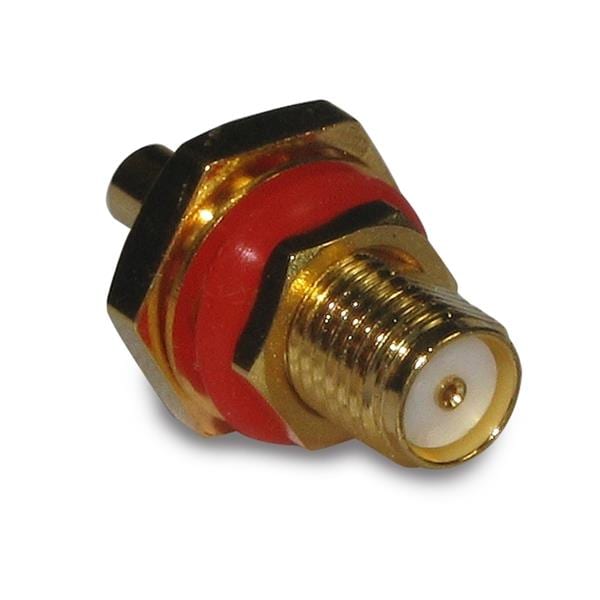

Amphenol RF 132251 ຕູ້ສະຫນອງ SMA BULKHEAD CABLE JACK .047

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Style: Bulkhead

Cable Type: 0.047 in. Semi-Rigid

Body Finish: Gold

Orientation: Straight

Unit Weight: 3.700 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
