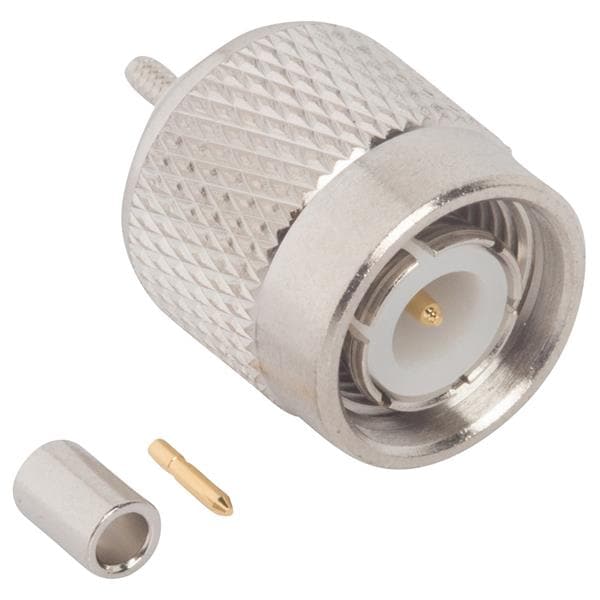

Amphenol RF 122429 ຕົວເຊື່ອມ TNC ST CRIMP PLUG RG178/196 50 OHM DL

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Cable Type: RG-178B/U, 196A/U

Body Finish: Nickel

Orientation: Straight

Unit Weight: 11.400 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
