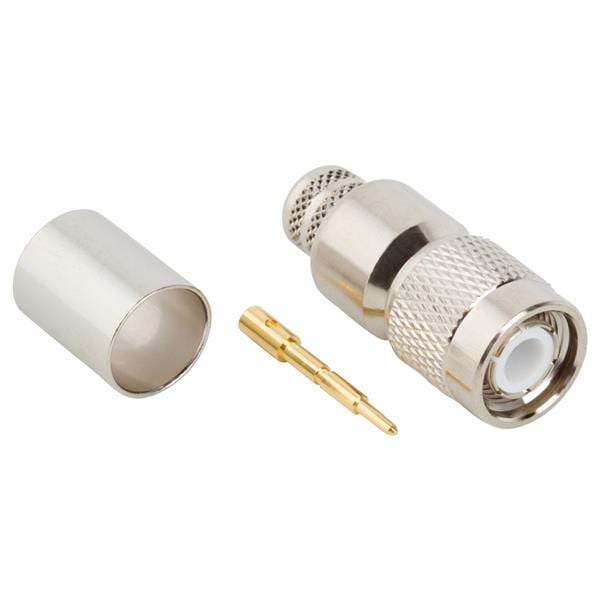

Amphenol RF 122398 ຕົວເຊື່ອມ TNC CRIMP PLUG 214/U 50 OHM

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Cable Type: RG-214, 225

Body Finish: Nickel

Orientation: Straight

Unit Weight: 23.300 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
