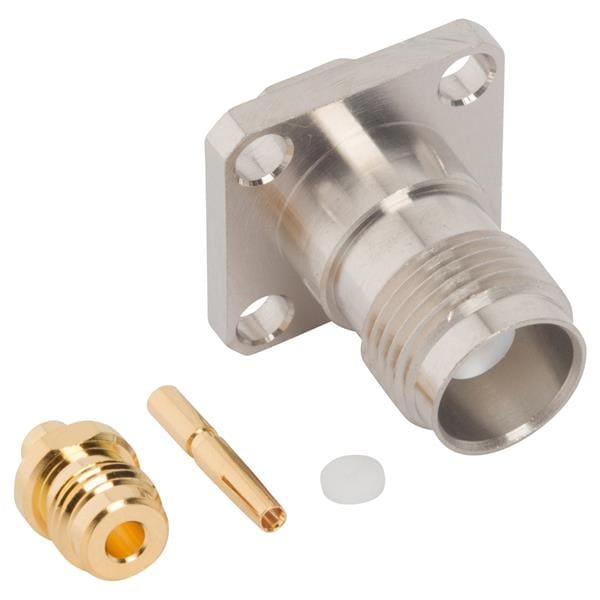

Amphenol RF 122389 ຕົວເຊື່ອມ TNC PANEL JACK .085 SEMI RIGID

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Cable Type: RG-405/U, 0.086 Semi-Rigid

Body Finish: Nickel

Orientation: Straight

Unit Weight: 13.600 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Flange Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
