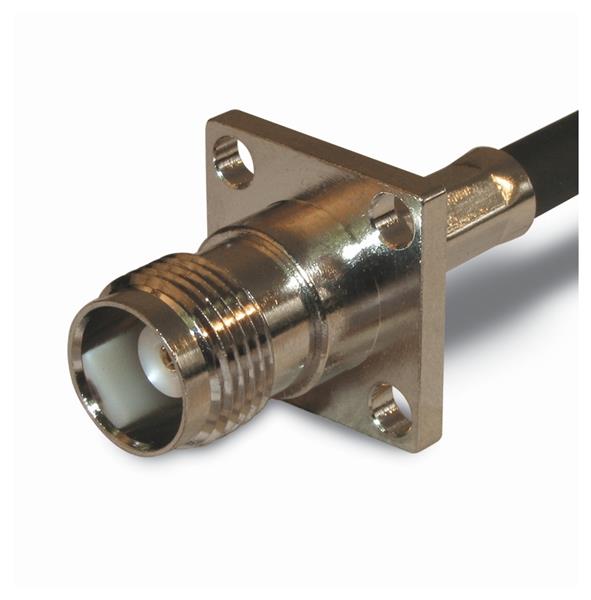

Amphenol RF 122230 ຕົວເຊື່ອມ TNC PANEL CRIMP JACK RG58 50 OHM TF

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Cable Type: RG-58, 58A, 58C, 141, 303, LMR195, Belden 7806A

Body Finish: Nickel

Orientation: Straight

Unit Weight: 15.140 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Flange Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
