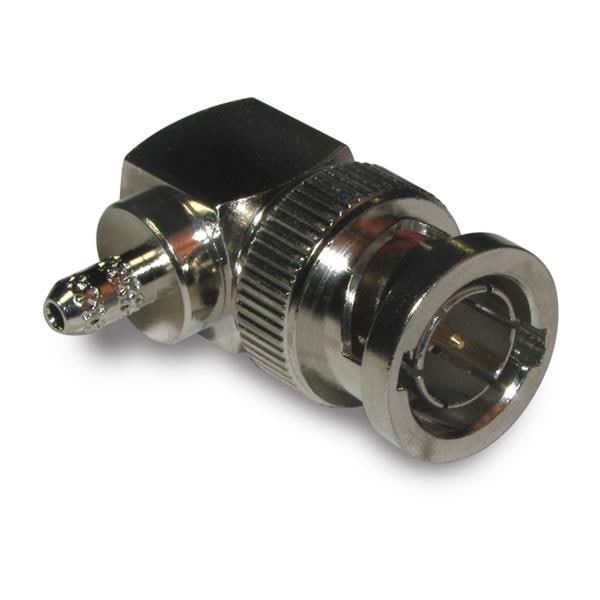

Amphenol RF 112179 ຕົວເຊື່ອມ BNC R/A CRIMP PLUG RG179 75 OHM BR DL

Gender: Plug (Pin)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Right Angle

Cable Type: RG-179, 187

Body Finish: Nickel

Orientation: Right Angle

Unit Weight: 19.300 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
