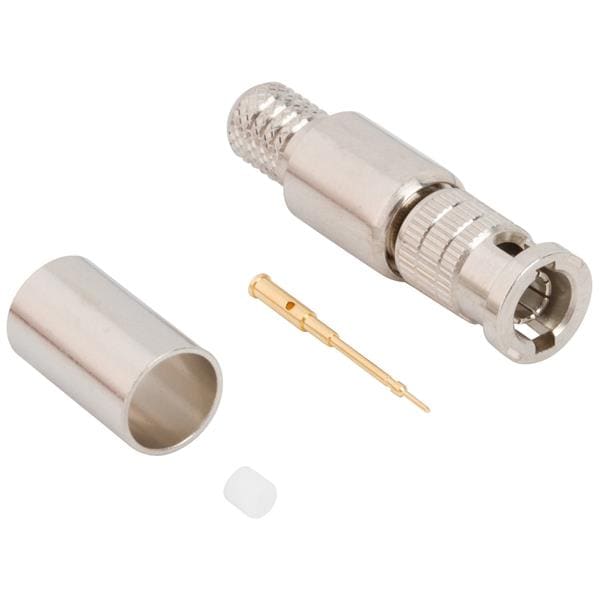

Amphenol RF 034-1137-12G ຕົວເຊື່ອມສາຍສະເພາະ HDBNC Str Cr Pl 75 Ohm 12G Opt

Gender: Plug (Pin)

Polarity: Standard

Frequency: DC to 18 GHz

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: HD-BNC

Body Style: Straight

Cable Type: Belden 4505P

Body Finish: Nickel

Orientation: Straight

Unit Weight: 5.850 g

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 18 GHz

Minimum Frequency: DC

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Crimp

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
