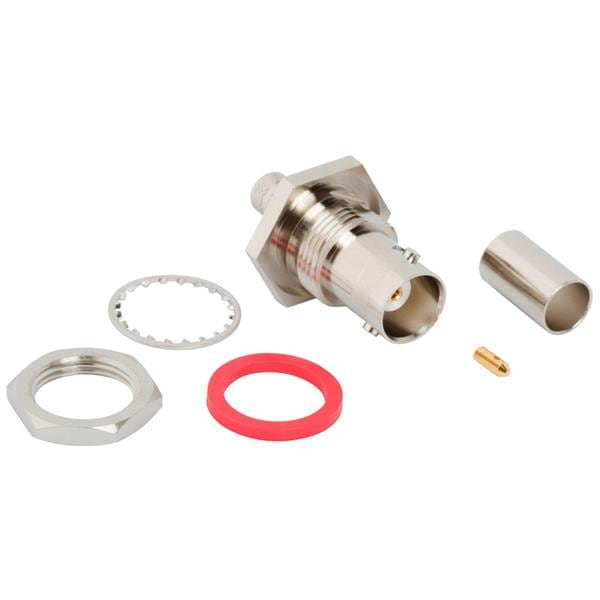

Amphenol RF 031-6928 ຕູ່ມິດ RF Connector BNC StrCrmp RG-8X

Gender: Jack (Socket)

Polarity: Standard

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Cable Type: RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258

Body Finish: Nickel

Orientation: Straight

Body Material: Brass

Mating Cycles: 500 Cycle

Insertion Loss: 1.3

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Minimum Frequency: DC

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
