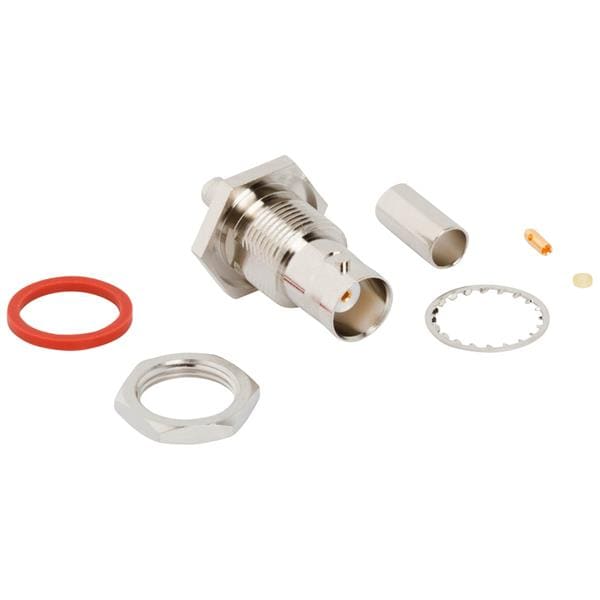

Amphenol RF 031-6927 ຕົວເຊື່ອມ RF Connector BNC StrCrmp RG-55 RG-142

Gender: Jack (Socket)

Polarity: Standard

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Bulkhead

Cable Type: RG-55, 142, 223, 400, Belden 83242, Times SF-142B

Body Finish: Nickel

Orientation: Straight

Body Material: Brass

Mating Cycles: 500 Cycle

Insertion Loss: 1.2

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 11 GHz

Minimum Frequency: DC

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 60 C
