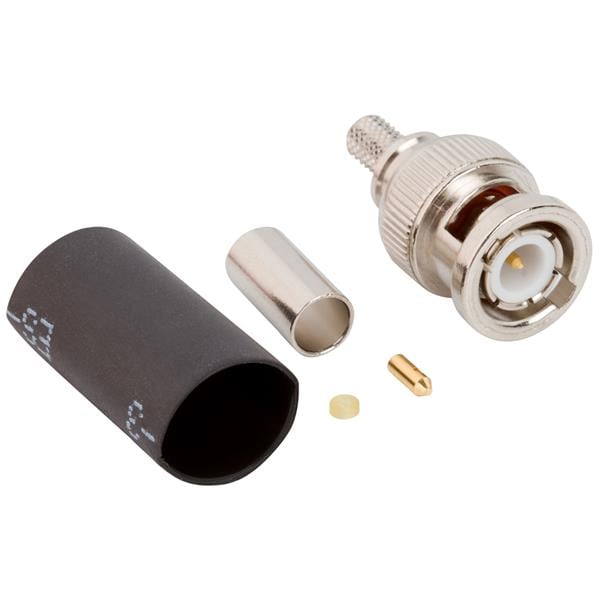

Amphenol RF 031-6924 ຕົວເຊື່ອມສາຍ BNC Str Cr Pl RG-58 50 Ohm IP67

Gender: Plug (Pin)

Polarity: Standard

Frequency: DC to 6 GHz

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Straight

Cable Type: RG-58, 141, LMR195

Body Finish: Nickel

Orientation: Straight

Unit Weight: 10.570 g

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Minimum Frequency: DC

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
