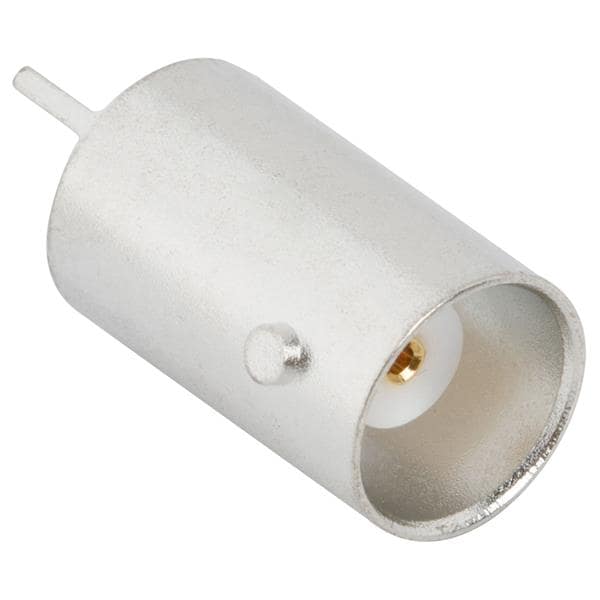

Amphenol RF 031-5329 ຕູ້ຕໍ່ PCB PC MNT RECEPT

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Straight

Body Finish: Nickel

Orientation: Straight

Unit Weight: 6.500 g

REACH - SVHC: Details

Body Material: Zinc Die Cast

Mating Cycles: 500

Mounting Style: Through Hole

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 4 GHz

Termination Style: Solder Pin

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
