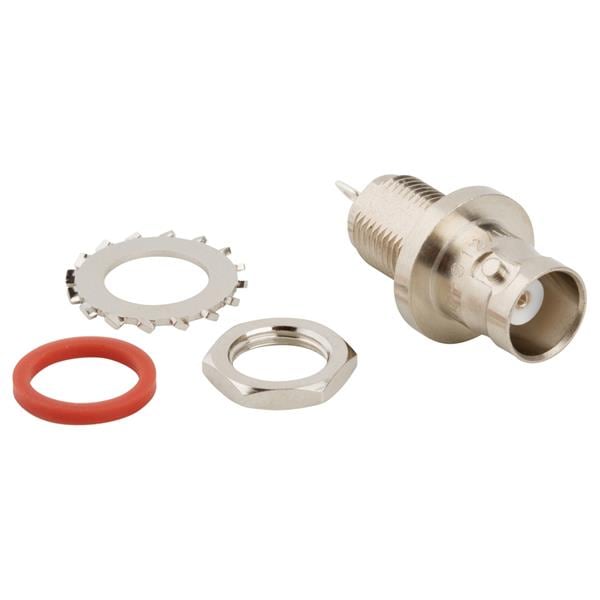

Amphenol RF 031-238 ຕົວເຊື່ອມ BNC BULKHEAD RECPT UG-912/U

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Right Angle

Body Finish: Nickel

Orientation: Straight

Unit Weight: 8.620 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Front Mount

Voltage Rating: 500 V

Contact Plating: Silver

Contact Material: Beryllium Copper

Maximum Frequency: 2 GHz

Termination Style: Solder

Coupling Mechanism: Bayonet

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
