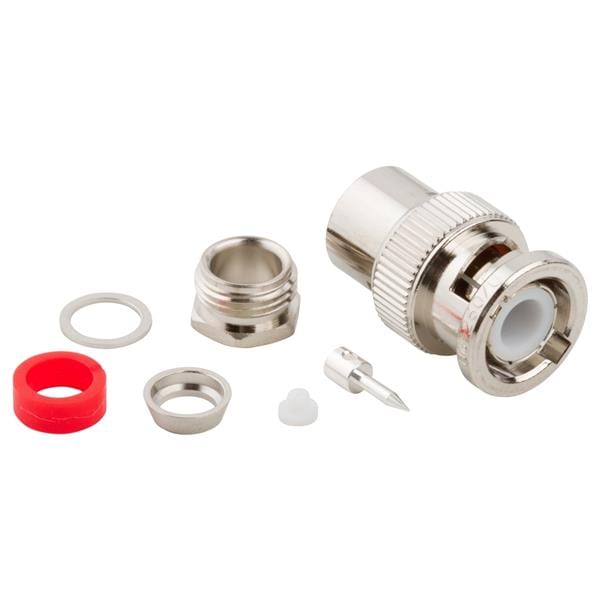

Amphenol RF 031-12 ຕົວເຊື່ອມ ST PLG 59 62 UG-260

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Straight

Cable Type: RG-59, 61, 62, 140, 210, 302

Body Finish: Nickel

Orientation: Straight

Unit Weight: 11.200 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Silver

Contact Material: Brass

Maximum Frequency: 4 GHz

Termination Style: Clamp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
