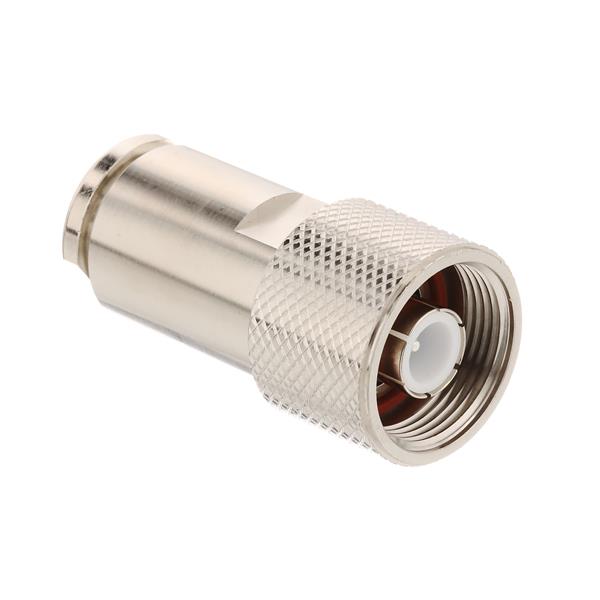

Amphenol RF 000-53175 ຕົວເຊື່ອມ TRIAX STRT PLG RG11

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: Triax

Body Style: Straight

Cable Type: Amphenol 21-597

Body Finish: Nickel

Orientation: Straight

Unit Weight: 87.090 g

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 1.9 kV to 5 kV

Contact Plating: Silver

Contact Material: Brass

Maximum Frequency: 300 MHz

Termination Style: Clamp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
