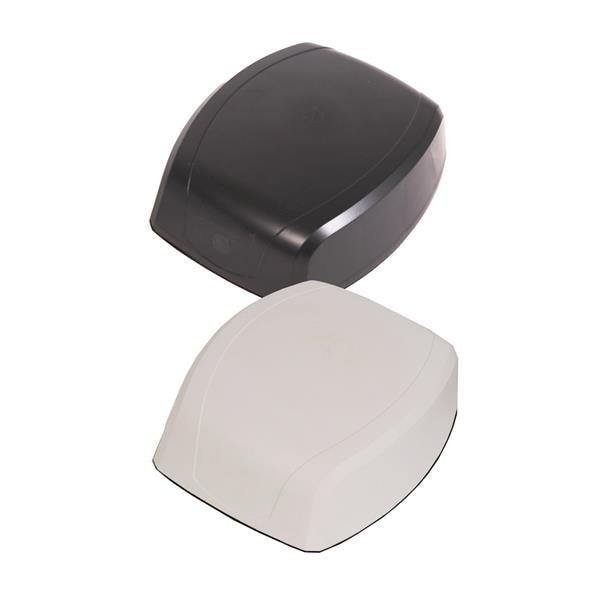

Amphenol Procom ProNexus B-G1-L4-W4-S/S/S MIMO ProNexus B-G1-L4-W4

Gain: 25 dB

VSWR: <2:1

Style: Dome

Width: 167 mm

Height: 68 mm

Length: 207 mm

IP Rating: IP69

Impedance: 50 Ohms

Application: Multipurpose

Unit Weight: 1.043 kg

Cable Length: 200 mm to 300 mm

Polarization: Right-Hand Circular

Power Rating: 25 W

Mounting Style: Panel Mount

Number of Bands: 4 Band

Mechanical Style: Square

Maximum Frequency: 7.2 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS

Protocol - WiFi - 802.11: WiFi 6E

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 50 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G
