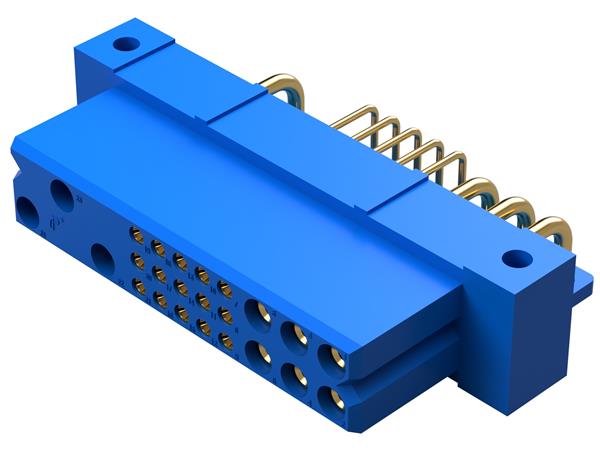

Amphenol Positronic PCIB24W9F400A1/AA ພາວເລີ້ມໃຫ້ກັບບອດ POWER&HYBRID

Pitch: 4.2 mm, 2.7 mm

REACH - SVHC: Details

Housing Color: Blue

Contact Gender: Socket (Female)

Current Rating: 45 A, 35 A, 3 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 3 Row

Voltage Rating: 1 kV, 500 V, 333 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polyester

Termination Style: Solder Tail

Contact Arrangement: 24W9

Number of Positions: 9 Power, 15 Signal

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
