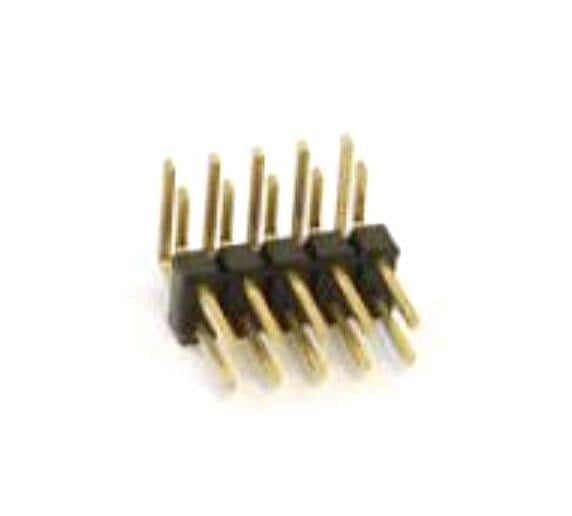

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 2.006 g
Housing Color: Black
Latching Type: Unlatched
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 1.5 kV
Contact Plating: Gold
Contact Material: Brass
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Mating Post Length: 5.84 mm (0.23 in)
Flammability Rating: UL 94 V-0
Number of Positions: 14 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 2.29 mm (0.09 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
