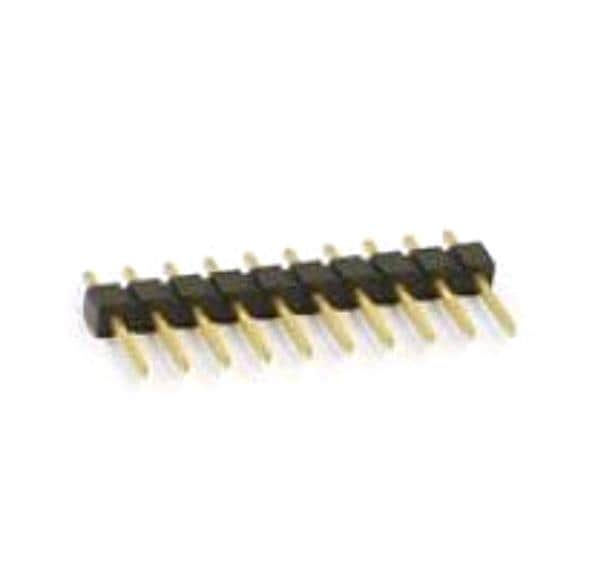

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board
Unit Weight: 1.169 g
Housing Color: Black
Latching Type: Unlatched
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 110 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Mating Post Length: 5.84 mm (0.23 in)
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Insulation Resistance: 1 GOhms
Termination Post Length: 3.05 mm (0.12 in)
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
