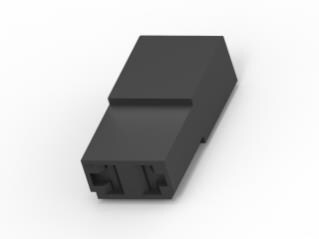

AMP Connectors - TE Connectivity 929643-1 ຮູຊິ້ງ 2P KUPPLUNGSGEH

Color: Black

Pitch: 4.5 mm (0.177 in)

Width: 21.5 mm

Gender: Receptacle (Female)

Height: 6.35 mm

Length: 10.3 mm

Application: Signal

Unit Weight: 642 mg

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 48 VDC

Wire Gauge Max: 15 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Housing Material: Polyamide (PA)

Wire Gauge Range: 15 AWG to 20 AWG

Lock Mate Feature: On the terminal

Termination Style: Crimp

Number of Positions: 2 Position

Description/Function: Timer Connector System, Housing for Female Terminals

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
