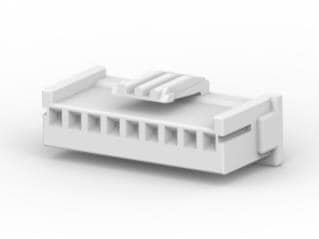

AMP Connectors - TE Connectivity 917693-1 ກອງປົກຄຸມ 2.5SIG DLOCK PLG HSG 9P

Color: Natural

Pitch: 2.5 mm (0.098 in)

Gender: Plug (Male)

Application: Power, Signal

Unit Weight: 890 mg

Contact Type: Socket

Contact Gender: Without Socket Contacts

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Voltage Rating: 250 VAC

Wire Gauge Max: 20 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Tin

Housing Material: Nylon

Wire Gauge Range: 20 AWG to 26 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 9 Position

Description/Function: AMP Signal Double Lock Housings

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
