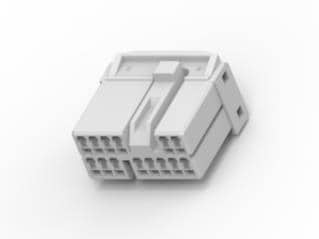

AMP Connectors - TE Connectivity 917531-1 ກອງປົກຄຸມ 040 MLC T.F. PLUG HSG 14P NATU

Color: Natural

Pitch: 2.5 mm (0.098 in)

Width: 24.6 mm

Gender: Plug (Male)

Height: 16.5 mm

Length: 22.6 mm

Application: Wire to Wire

Row Spacing: 5.2 mm

Unit Weight: 4 g

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 12 VDC

Wire Gauge Max: 20 AWG

Wire Gauge Min: 22 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 22 AWG to 20 AWG

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Number of Positions: 14 Position

Description/Function: 040 MLC T.F. Plug Housings

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
